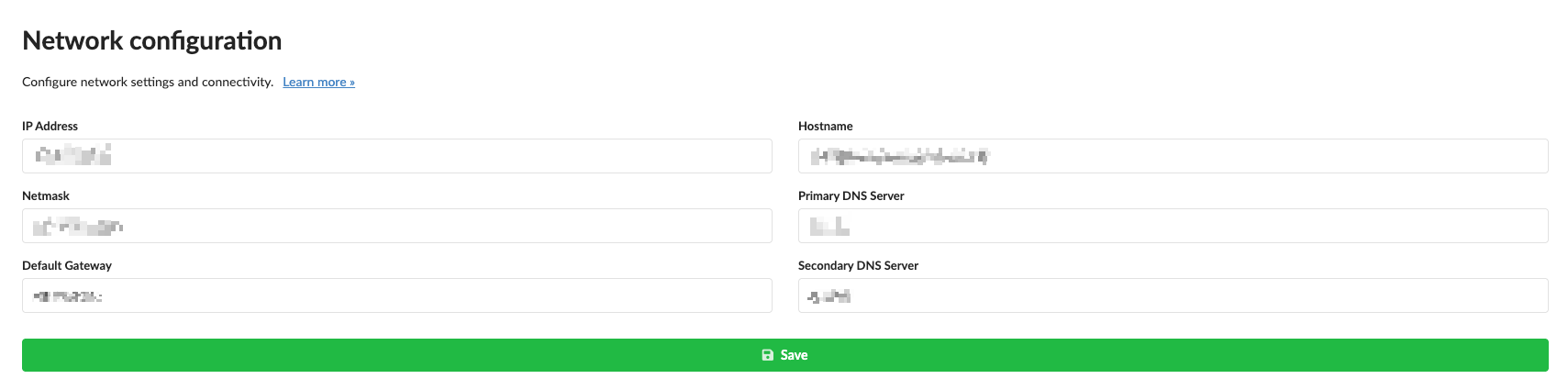

Configure network settings to ensure proper connectivity and communication for the Archiver system. Network configuration includes IP addressing, DNS resolution, gateway settings and hostname management. The network configuration interface allows administrators to specify network interface parameters, including IP addresses, subnet masks, default gateways and DNS server settings. Proper network configuration ensures that the Archiver can communicate with email servers, directory services and other network resources.

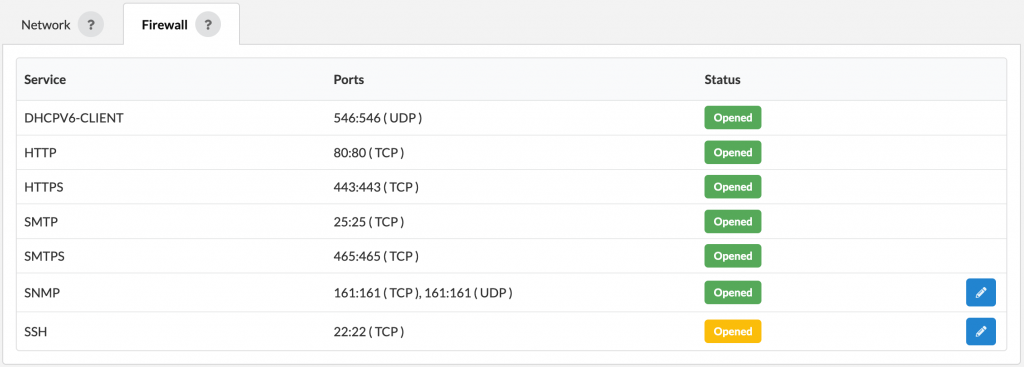

Firewall

In the firewall tab you can review the status of the firewall.

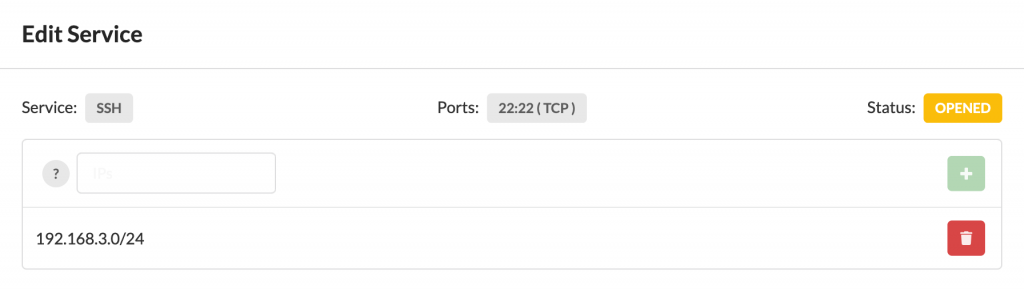

For the SNMP and SSH services you can completely close the ports or open them for specific IP addresses or subnets only.

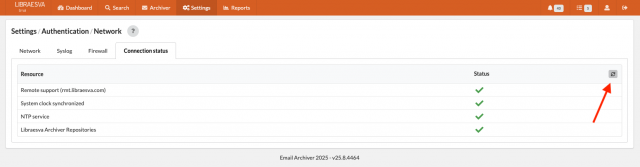

Connection Status

In this tab you can review the status of the connection between the Email Archiver and other important services the Email Archiver might need during its operations.

By clicking on the refresh icon, in the top right corner, is possible to visualize the status of those connection with the services. In case the connection is blocked by any mean, an error will be displayed explaining the probable reason.

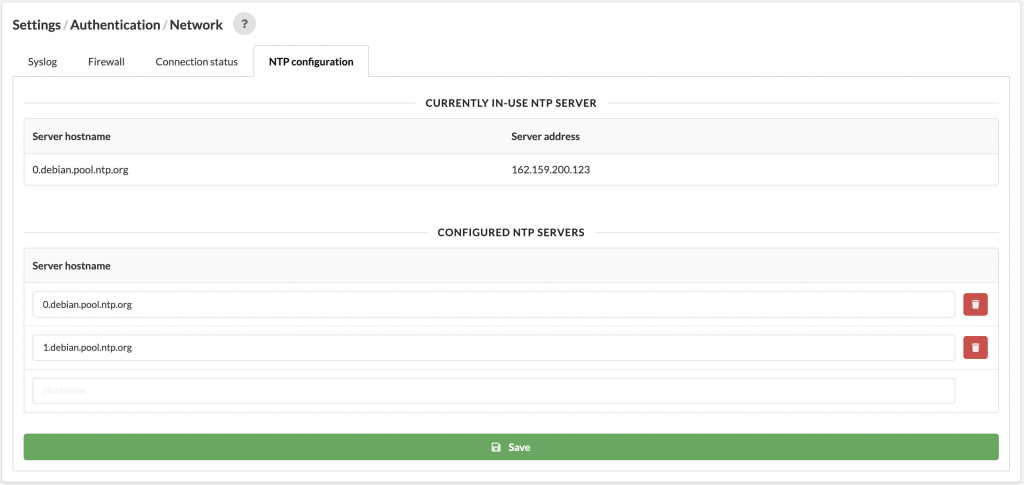

NTP configuration

From here you can configure your NTP server connection
