SAML for users

New Application

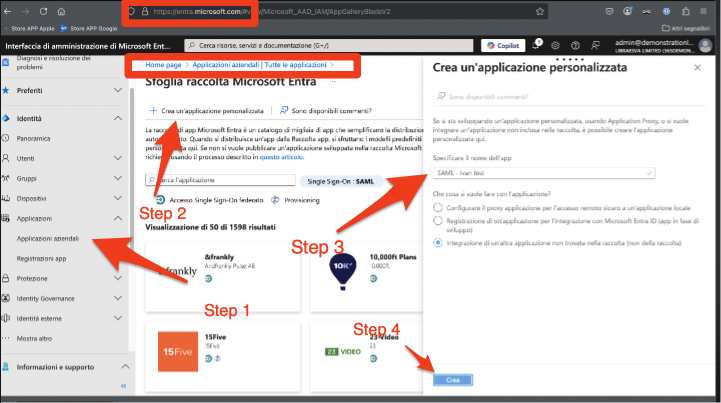

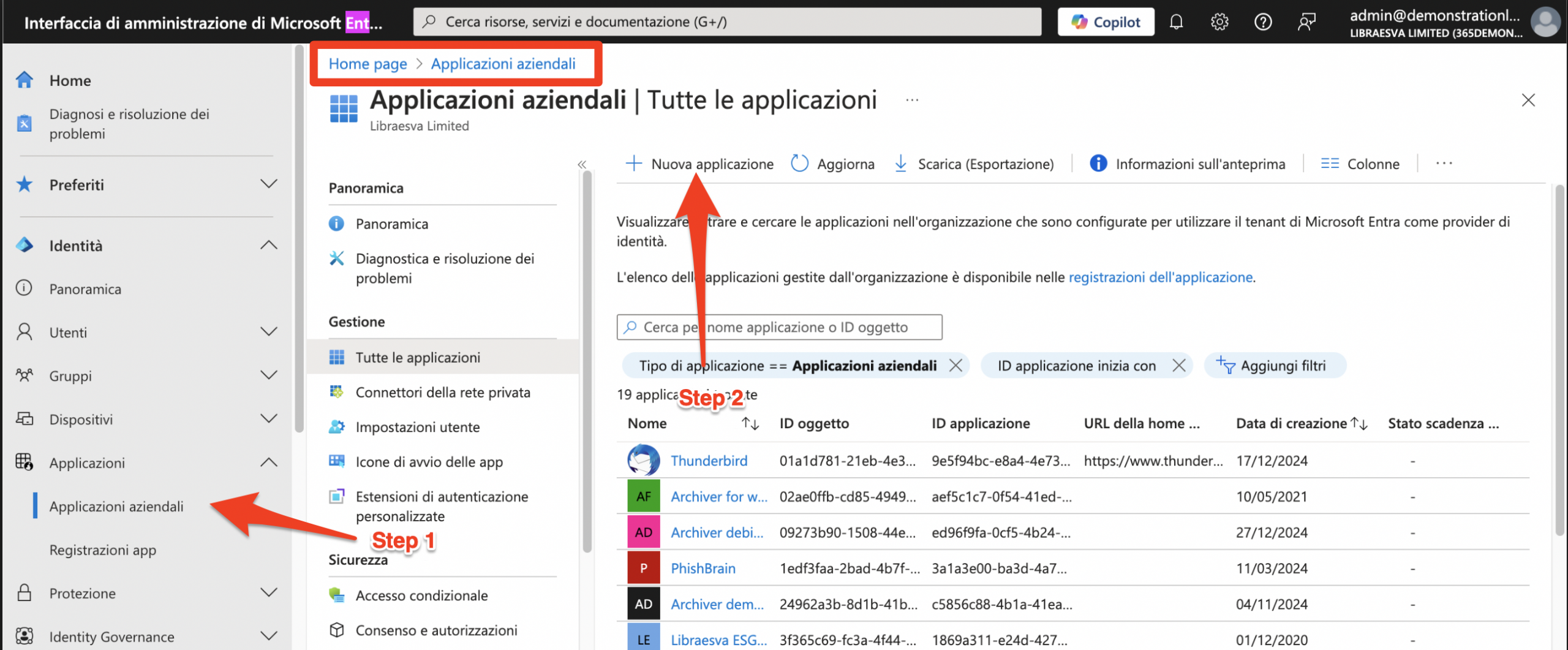

Go to: https://entra.microsoft.com > Application > Enterprise Applications > New Application

Create SAML App following steps

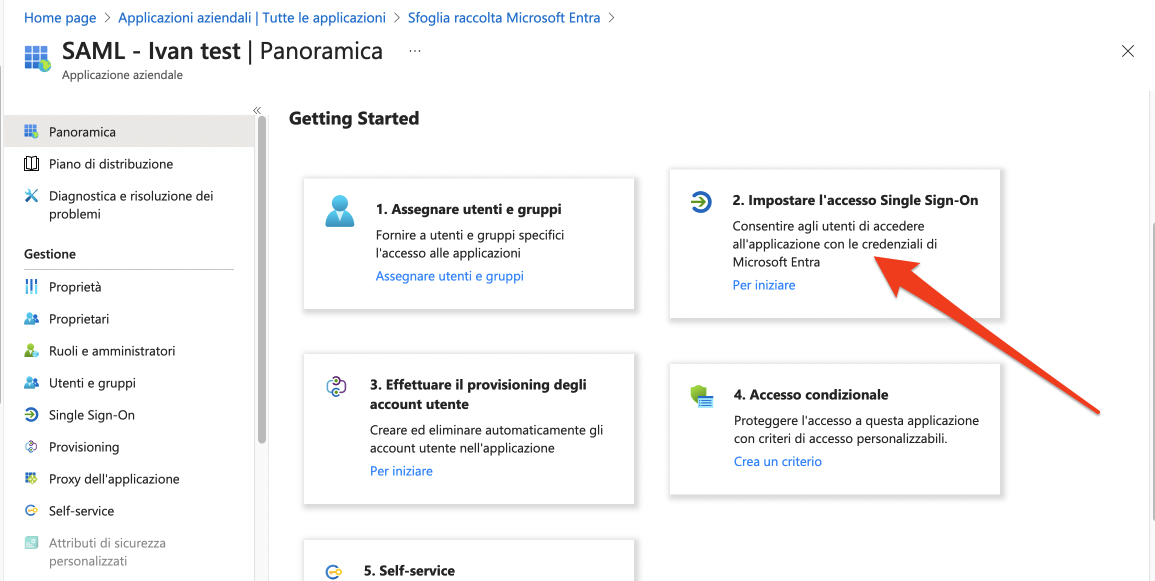

Select Single Sign-on scope

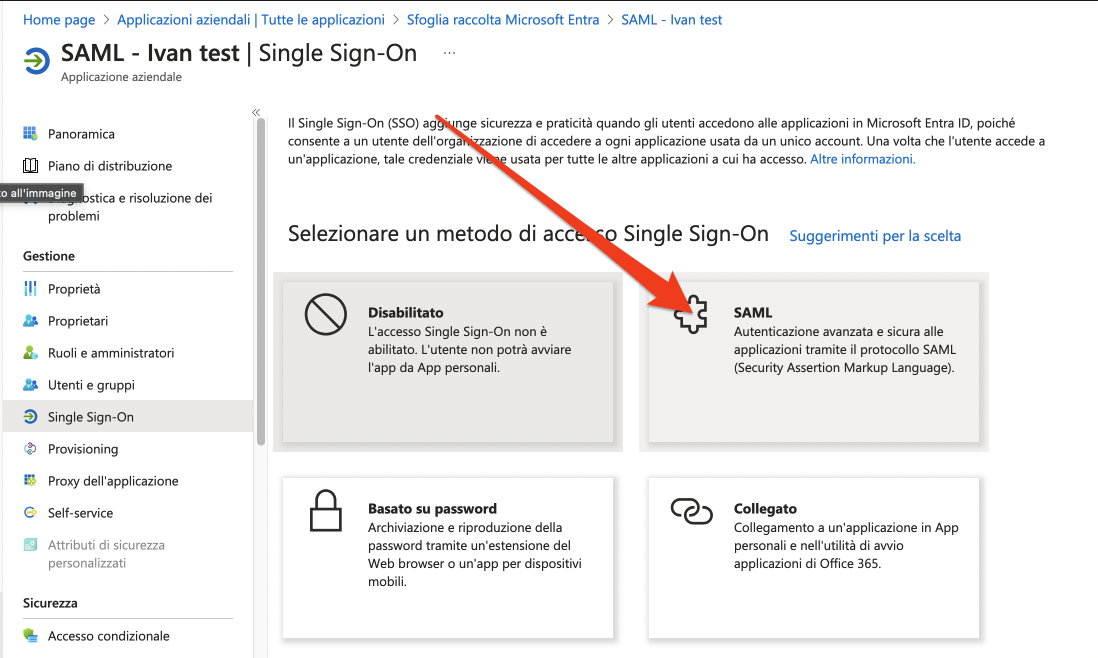

Select SAML as SSO method

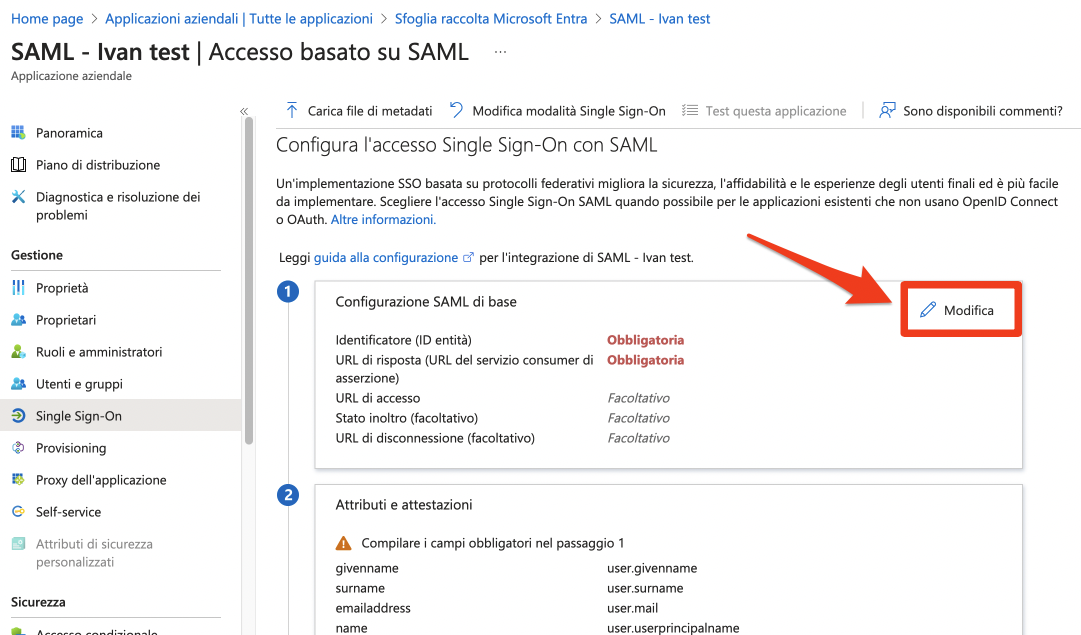

SAML edit configuration

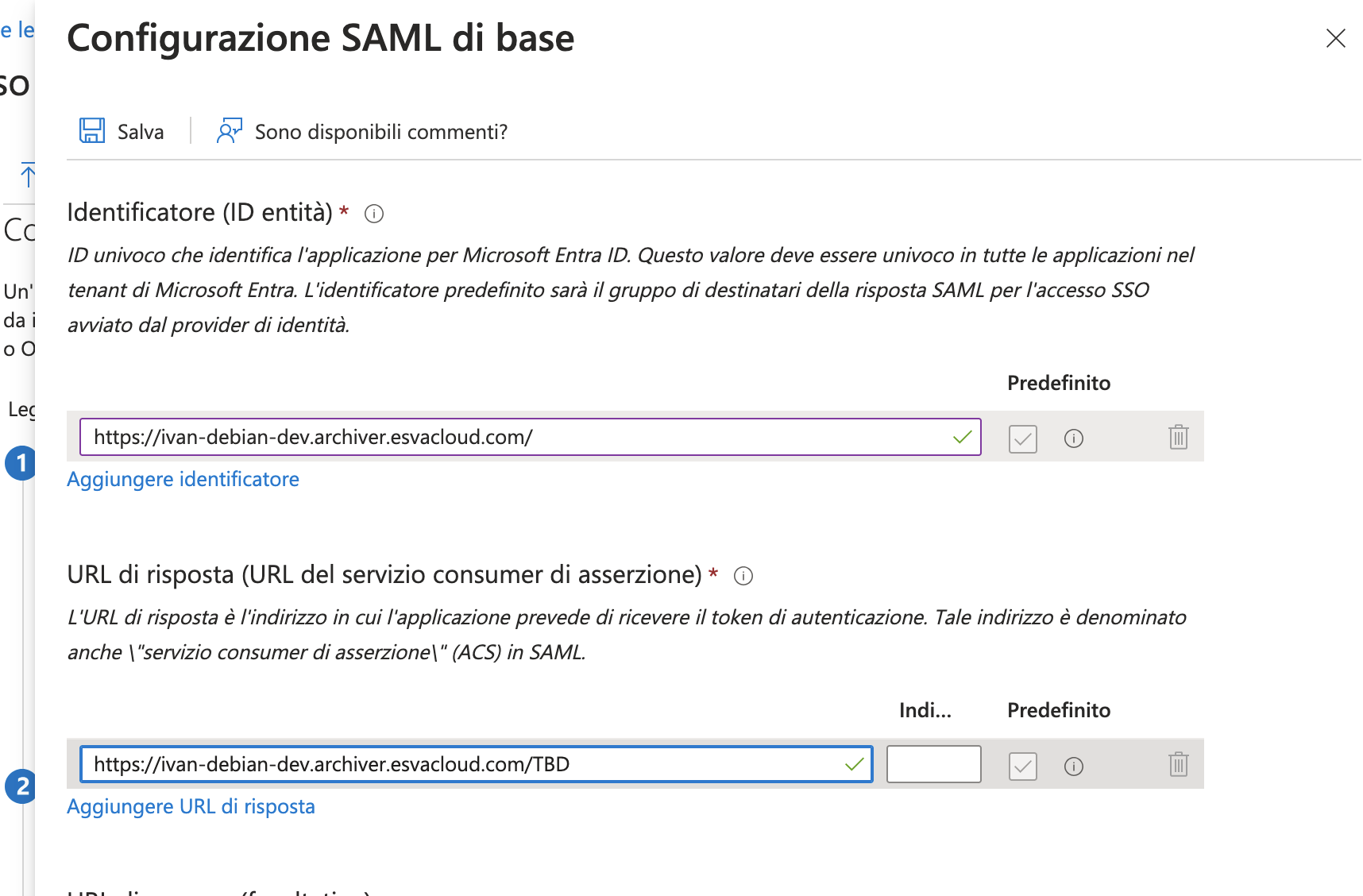

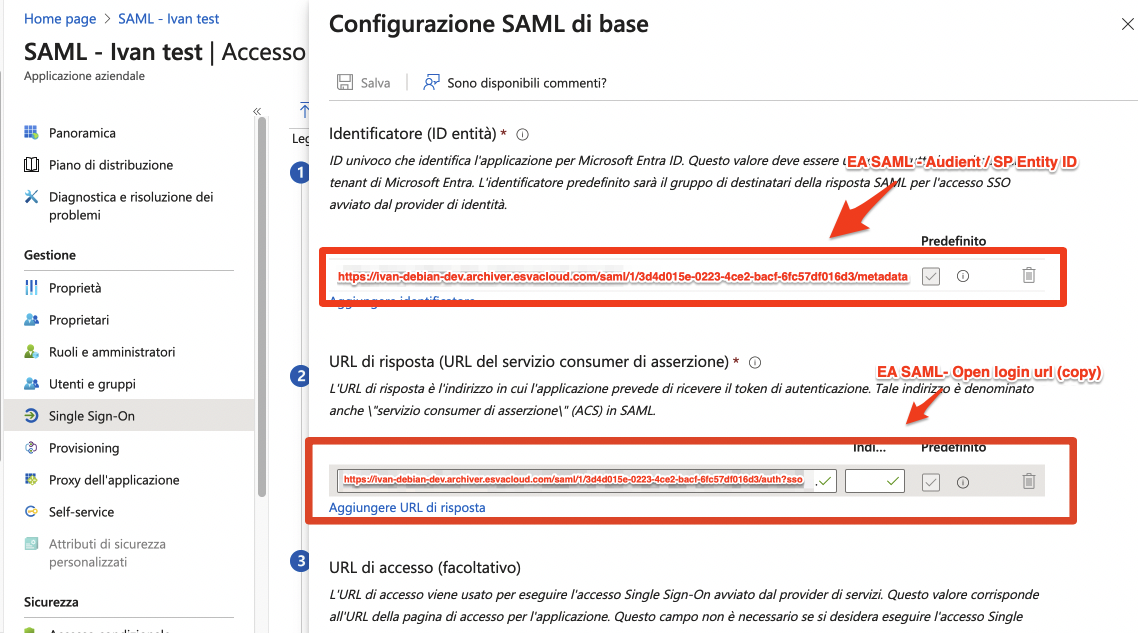

Configure basic SAML

• Add Identificator => EA_FQDN "ex: https://ivan-debian-dev.archiver.esvacloud.com"

• Add reply URL "Mandatory", in this phase is not available so place temporary EA_FQDN, to be replaced later

• SAVE

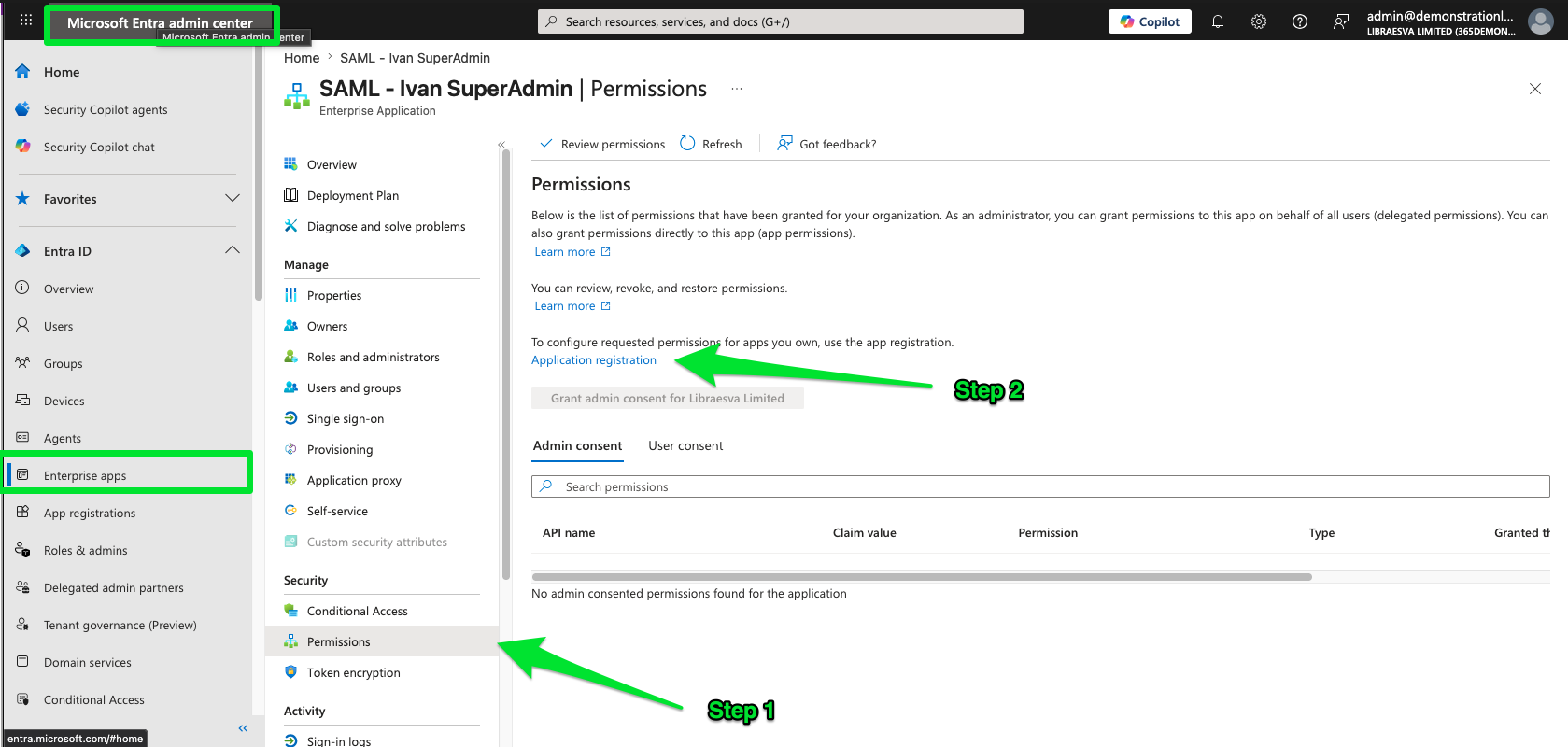

Application registration

Go to: https://entra.microsoft.com > Enterprise Applications > Permissions > Application registration

M365 Auth Configuration

Make sure the 365 configuration is completed Configure Office 365 Authentication

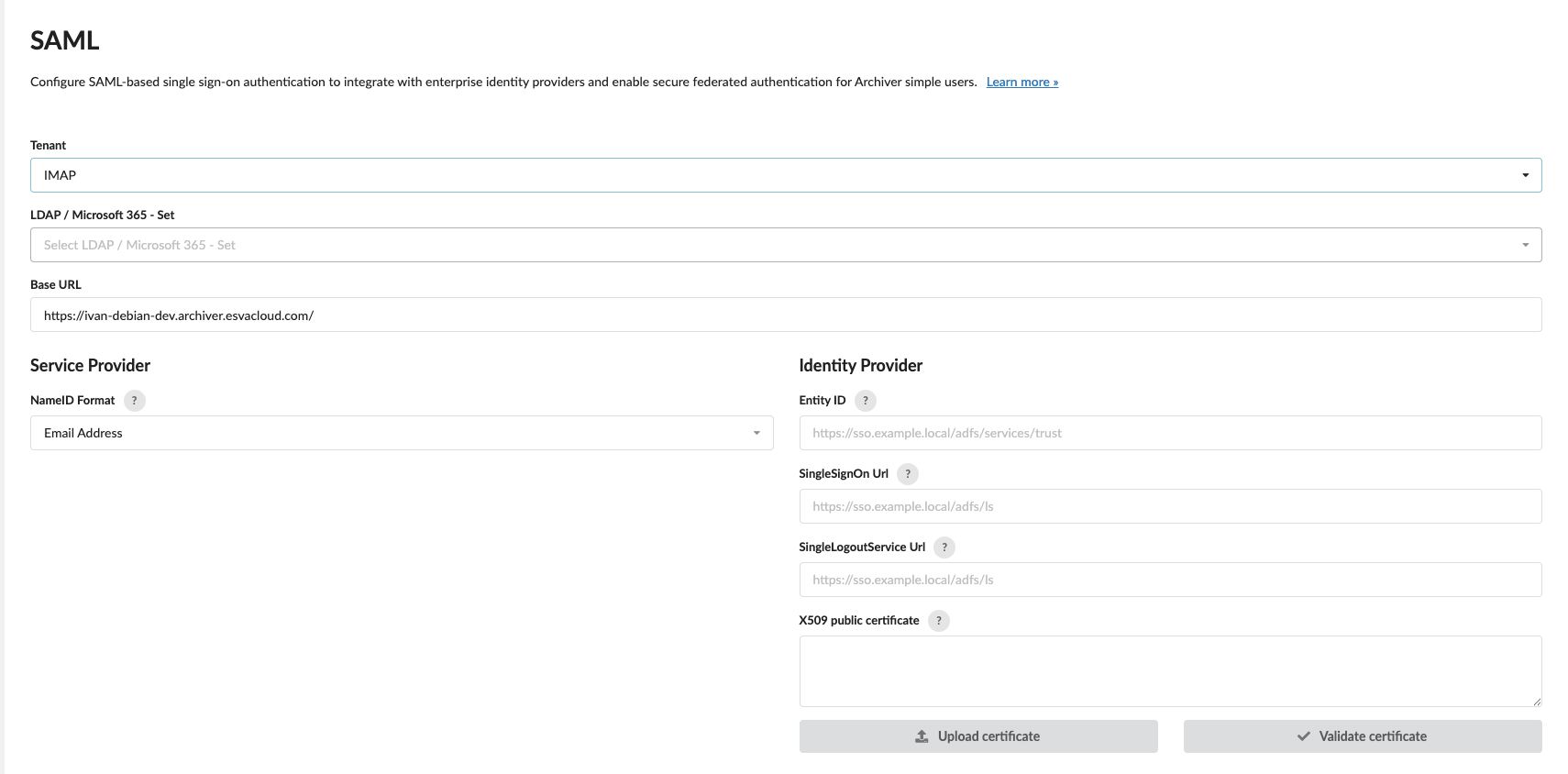

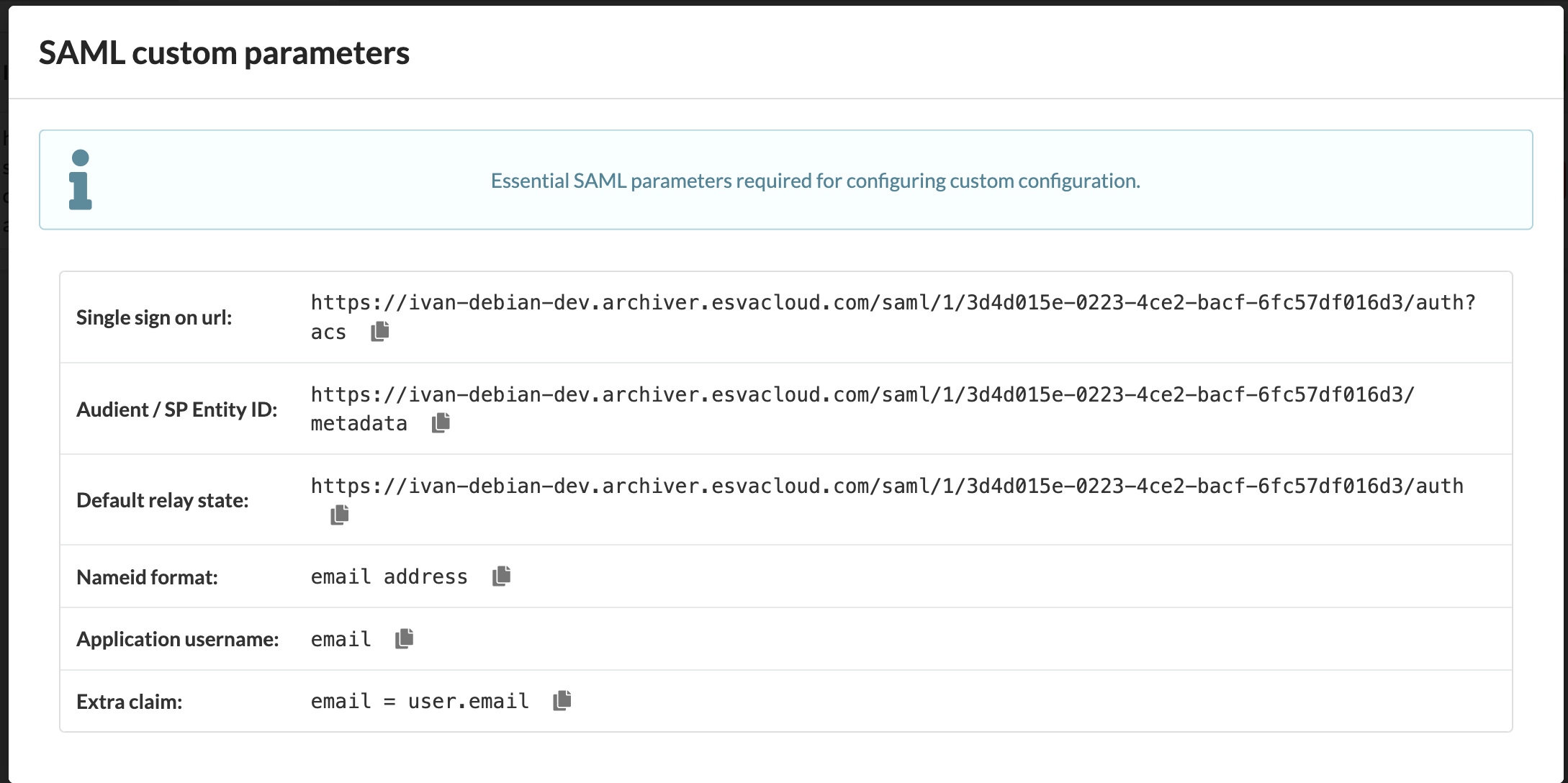

Go to the EmailArchiver > Appliance > Integrations > SAML for users

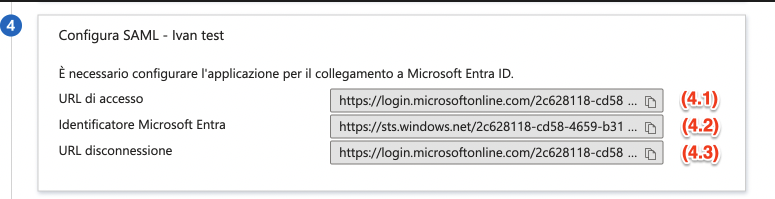

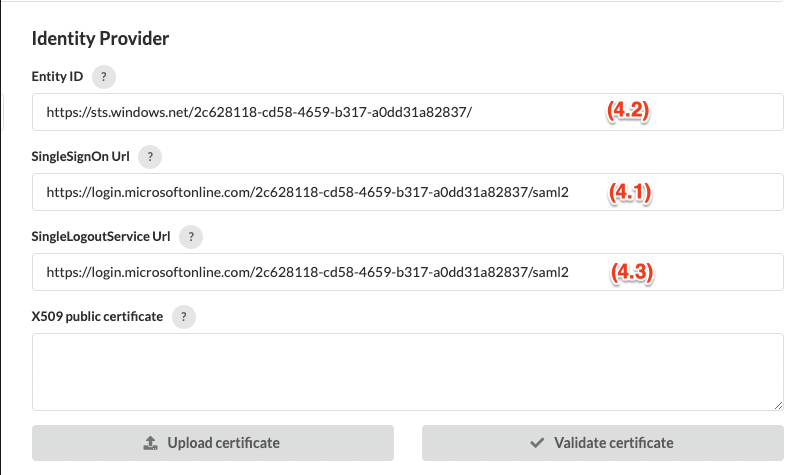

Identity Provider data

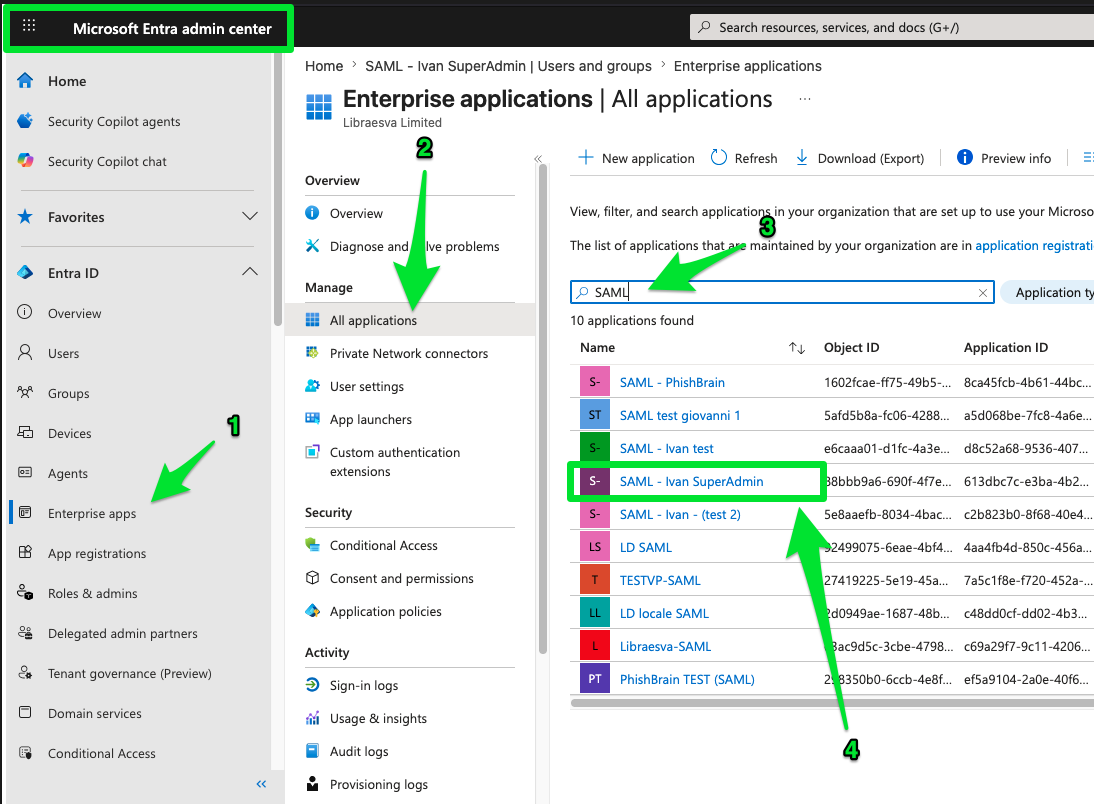

• Go to: https://entra.microsoft.com > Enterprise Applications > look up for the newly registered SAML application

• Click Single sign-on

• Copy elements (4.1), (4.2), (4.3) to EA SAML configuration (4.1), (4.2), (4.3)

• Edit SAML configuration

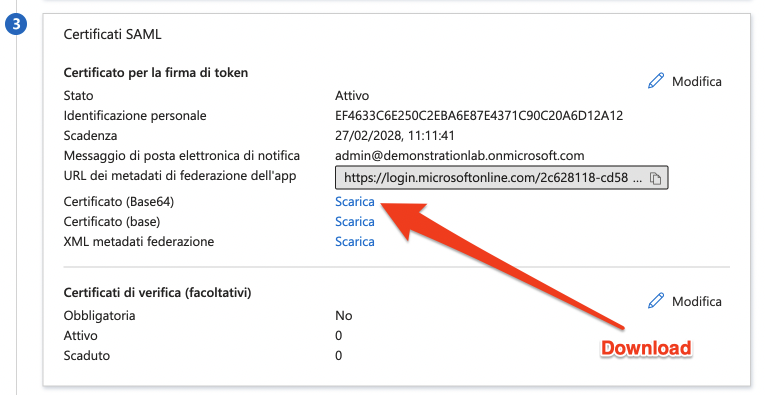

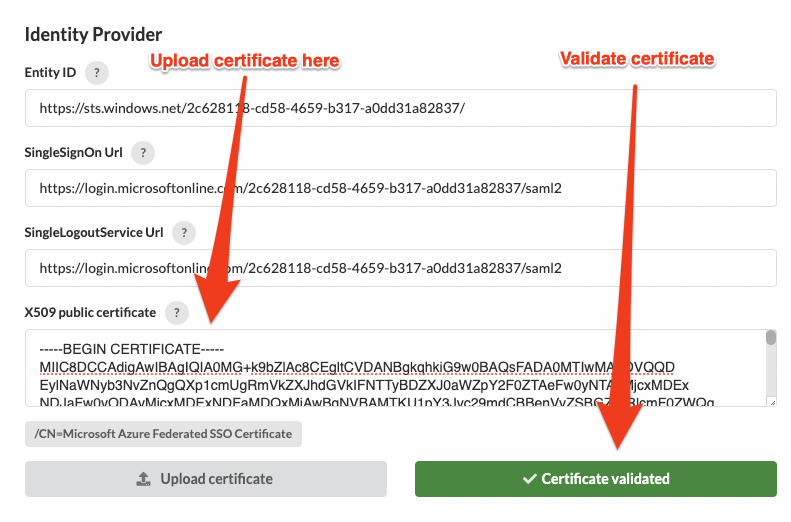

• Download certificate and upload on X509 public certificate section

• SAVE

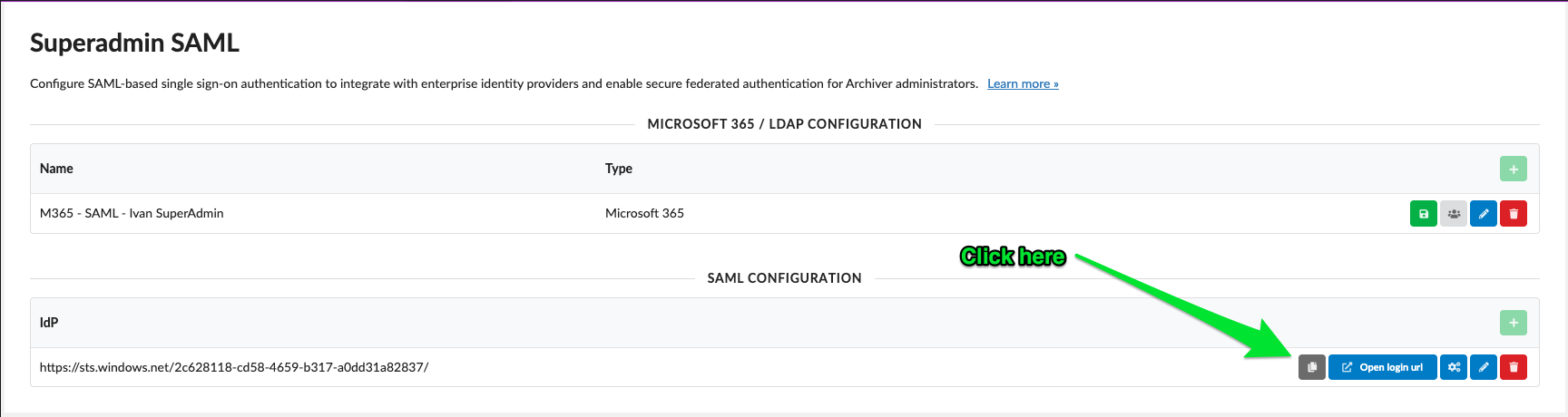

Update reply url

Paste url into 365 config

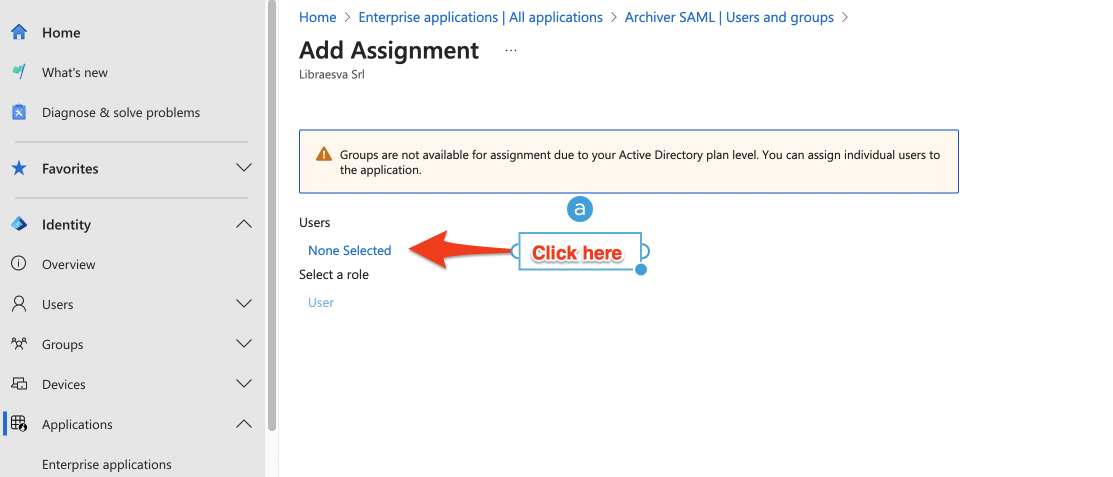

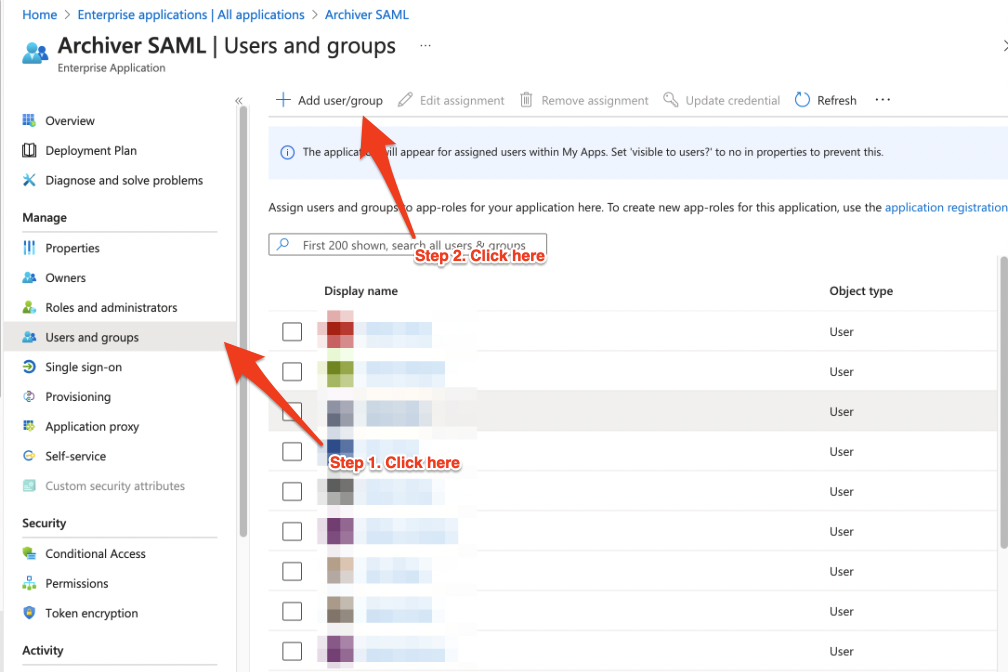

Add allowed users

• Users and groups > Add user/group

• Add user

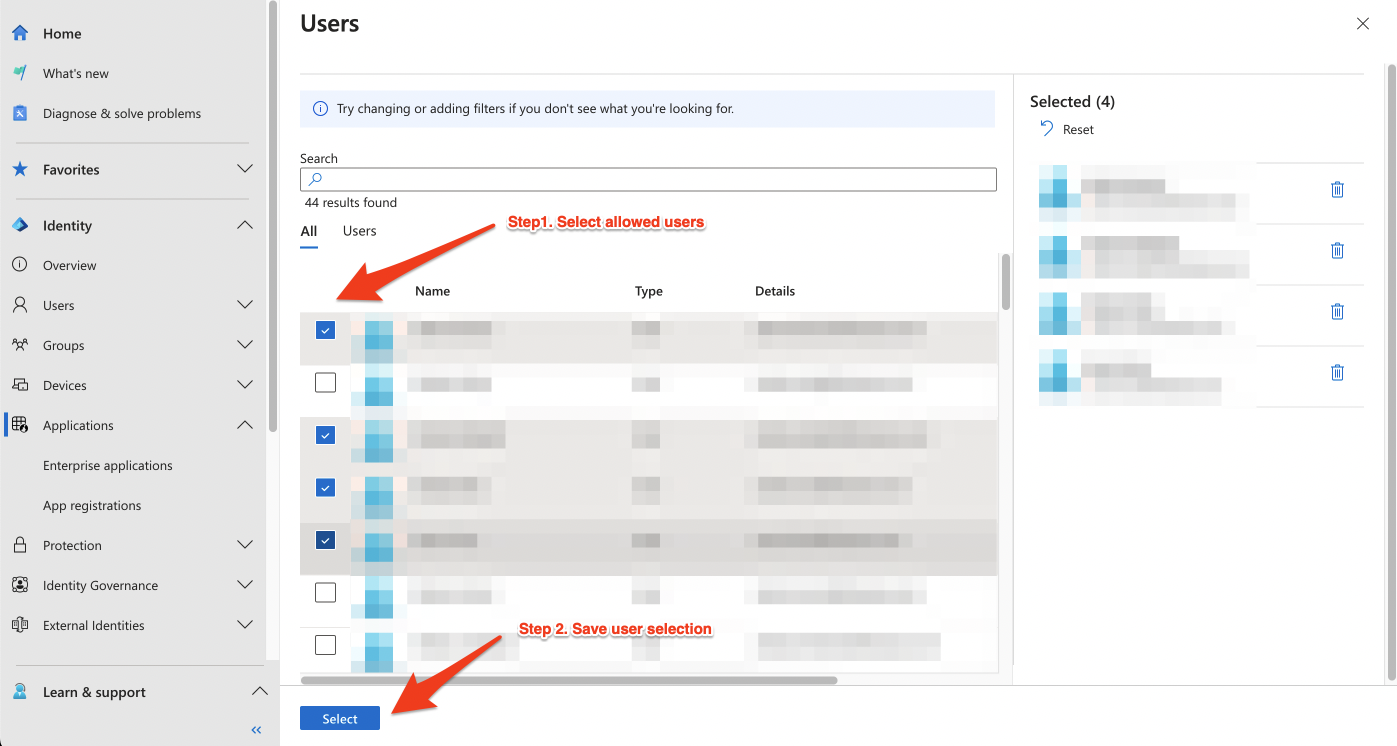

• Select allowed users

• NB: list of allowed users must be the same of list of users configured into Microsoft 365 authentication.

TEST authentication
